Behavior trees have become quite popular across engineering over the last several decades, especially in robotics and game design, for orchestrating and composing the logic of independent units (robots in robotics, NPCs in games, etc.).
The reason is clear: they offer a strict and understandable model that makes it easy to separate business logic from flow control. They also work with a small set of logically connected components, which makes the design easier and, in turn, relatively easy to maintain and develop.
This article is a brief introduction to Forester and why the game is worth the candle.
Why Forester
First of all, Forester is an orchestration framework that operates on top of behavior trees.
The main idea and goal of Forester is to make the process of chaining complex logic from different tasks together effective and easy.
To that end, the framework provides a DSL above the trees, allowing you to write trees programmatically and avoid duplicating code.
The framework is written in Rust and intended to be used in a Rust environment. However, there are ways to implement trees and action behavior without writing code directly — for example, using HTTP services. Another approach is to simulate the actions of a given tree, which is what this article describes.
A detailed description of the framework is available on GitHub.
F-tree
The DSL is straightforward and resembles other scripting languages. It supports tree definitions, invoking definitions from other files, imports, parameters with arguments, higher-order tree definitions, and more.
Below is an example of a simple tree:
root place_ball_to_target fallback {
place_to(
what = {"x":1 },
operation = place([10]),
)
retry(5) ask_for_help()
}
sequence place_to(what:object, operation:tree){
fallback {
is_approachable(what)
do_job(approach(what))
}
fallback {
is_graspable(what)
do_job(grasp_ball(what))
}
sequence {
savepoint()
operation(..)
}
}
sequence place(where:array){
is_valid_place(where)
do_job(slowly_drop({"cord":1}))
}
sequence do_job(action:tree){
savepoint()
action(..)
savepoint()
}
cond is_approachable(obj:object);
cond is_graspable(obj:object);
cond is_valid_place(obj:object);
impl approach(obj:object);
impl grasp(obj:object);
impl ask_for_help();
impl place_to(where:array);
impl savepoint();
impl slowly_drop(params:object);
The definitions without a body are the actions that need to be implemented.
The F-tree lets you use simple tree definitions, isolate code, and reduce redundancy when creating trees.
A complete description of the language’s features is available on GitHub.
Simulation
The framework provides a simple way to test a tree independently of action implementations. This is important to ensure the logic of the tree is correct and predictable.
To start working with simulation mode, you need to install the console utility. Cargo can help with that:
cargo install f-tree
The framework operates with the concept of a project: it requires a root directory (relative imports start from the root directory) and a main file that contains the root tree definition.
By default, the main file is named main.tree, and if the file has only one root definition, that definition will be selected.
Let’s create a simple tree. The example is synthetic, but it should be enough to demonstrate the framework’s ability to provide useful information.
// there is an std library that provides a small set of helpers
import "std::actions"
// root definition and the entry point of the tree
root main sequence {
// allows storing a string in the Blackboard (internal memory layer)
store_str("info1", "initial")
// a higher-order tree that accepts other trees as arguments
retryer(task(config = obj), success())
store_str("info2","finish")
}
// a simple retryer that tries to execute a given tree 5 times
// and then proceeds further if the given tree fails.
fallback retryer(t:tree, default:tree){
// a decorator that repeats the invocation of the tree up to 5 times
retry(5) t(..)
// a std tree definition that always fails
fail("just should fail")
default(..)
}
// The action that has some business logic.
impl task(config: object);
Now we need to test the logic of the tree.
Create a file main.tree and place the code above in it.
Then create a simulation profile in that folder, let’s call it fail_sim.yaml:
config:
trace: gen/main.log
graph: gen/main.svg
bb:
dump: gen/bb.json
max_ticks: 10
actions:
-
name: task
stub: failure
params:
delay: 100
The config section denotes artifacts that will be produced during and after the execution of the tree:
trace: the trace file of every step that was performed.graph: the visual representation of the tree.bb.dump: the snapshot of the Blackboard after the process finishes.max_ticks: the limit of possible ticks. This can be important when dealing with endless loops or when constrained by resources.
The actions section denotes how to stub the tasks that are supposed to be implemented. In the script, we have only one task to implement, called task. We assign the failure stub to it, meaning the stub will return failure after 100 milliseconds of delay.
After that, navigate to the folder from the console and run the simulation:
f-tree sim -p sim.yaml
Which returns:
[2023-07-17T19:48:16Z INFO f_tree] the process is finished with the result: Success
Now head to the gen folder and find the following artifacts:
Trace file main.log
The file shows how the tree is executed step by step, with the format:
[tick_number] [id] : [Status with the given arguments]
[1] 1 : Running(cursor=0,len=1)
[1] 2 : Running(cursor=0,len=3)
[1] 3 : Success(key=info1,value=initial)
[1] 2 : Running(cursor=1,len=3)
[1] 4 : Running(cursor=0,len=3)
[1] 6 : Running(len=1)
[1] 9 : Failure(config=obj,reason=)
[1] 6 : Running(arg=2,cursor=0,len=1)
[1] 4 : Running(cursor=0,len=3,prev_cursor=0)
[1] 2 : Running(cursor=1,len=3,prev_cursor=1)
[2] next tick
[2] 2 : Running(cursor=0,len=3,prev_cursor=1)
[2] 4 : Running(cursor=0,len=3,prev_cursor=0)
[2] 6 : Running(arg=2,cursor=0,len=1)
[2] 9 : Failure(config=obj,reason=)
[2] 6 : Running(arg=3,cursor=0,len=1)
[2] 4 : Running(cursor=0,len=3,prev_cursor=0)
[2] 2 : Running(cursor=0,len=3,prev_cursor=1)
[2] 1 : Running(cursor=0,len=1)
[3] next tick
[3] 2 : Running(cursor=0,len=3,prev_cursor=1)
[3] 4 : Running(cursor=0,len=3,prev_cursor=0)
[3] 6 : Running(arg=3,cursor=0,len=1)
[3] 9 : Failure(config=obj,reason=)
[3] 6 : Running(arg=4,cursor=0,len=1)
[3] 4 : Running(cursor=0,len=3,prev_cursor=0)
[3] 2 : Running(cursor=0,len=3,prev_cursor=1)
[3] 1 : Running(cursor=0,len=1)
[4] next tick
[4] 2 : Running(cursor=0,len=3,prev_cursor=1)
[4] 4 : Running(cursor=0,len=3,prev_cursor=0)
[4] 6 : Running(arg=4,cursor=0,len=1)
[4] 9 : Failure(config=obj,reason=)
[4] 6 : Running(arg=5,cursor=0,len=1)
[4] 4 : Running(cursor=0,len=3,prev_cursor=0)
[4] 2 : Running(cursor=0,len=3,prev_cursor=1)
[4] 1 : Running(cursor=0,len=1)
[5] next tick
[5] 2 : Running(cursor=0,len=3,prev_cursor=1)
[5] 4 : Running(cursor=0,len=3,prev_cursor=0)
[5] 6 : Running(arg=5,cursor=0,len=1)
[5] 9 : Failure(config=obj,reason=)
[5] 6 : Failure(arg=5,cursor=0,len=1,reason=)
[5] 4 : Running(cursor=1,len=3,prev_cursor=0)
[5] 7 : Failure(reason=just should fail)
[5] 4 : Running(cursor=2,len=3,prev_cursor=0)
[5] 8 : Success()
[5] 4 : Success(cursor=2,len=3,prev_cursor=0)
[5] 2 : Running(cursor=2,len=3,prev_cursor=1)
[5] 5 : Success(key=info2,value=finish)
[5] 2 : Success(cursor=2,len=3,prev_cursor=1)
[5] 1 : Running(cursor=0,len=1)
[5] 1 : Success(cursor=0,len=1)

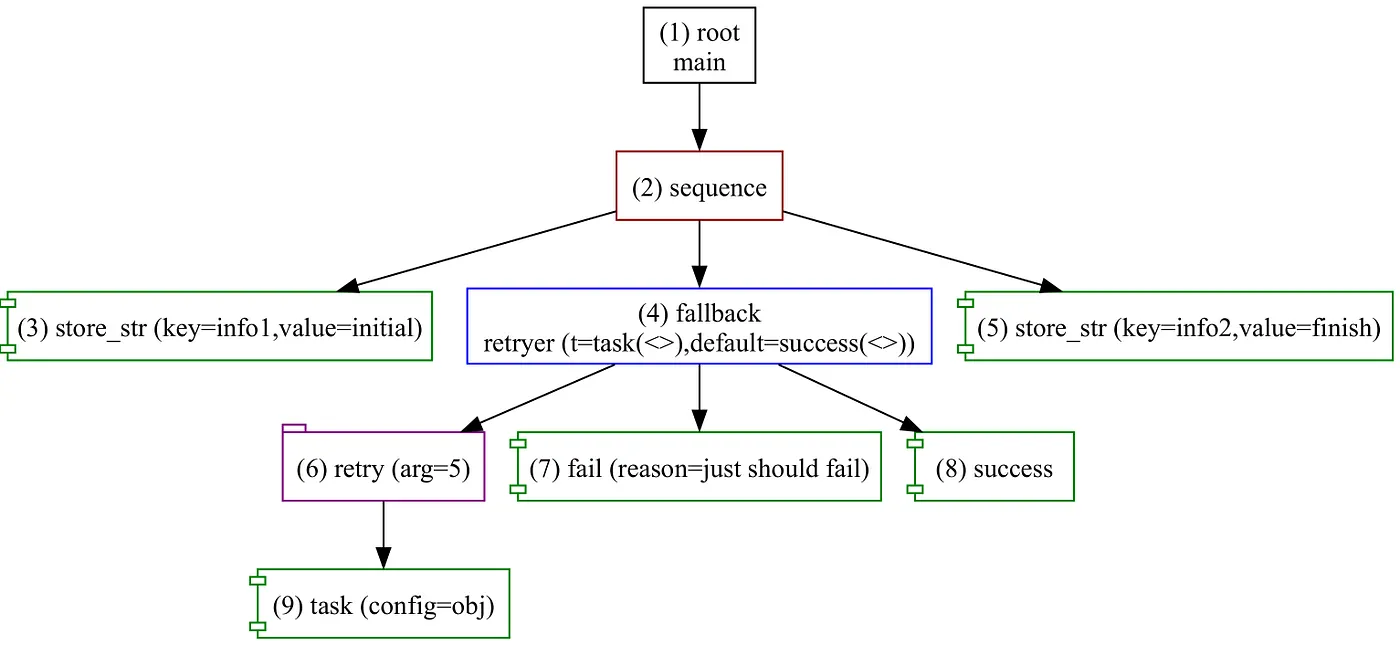

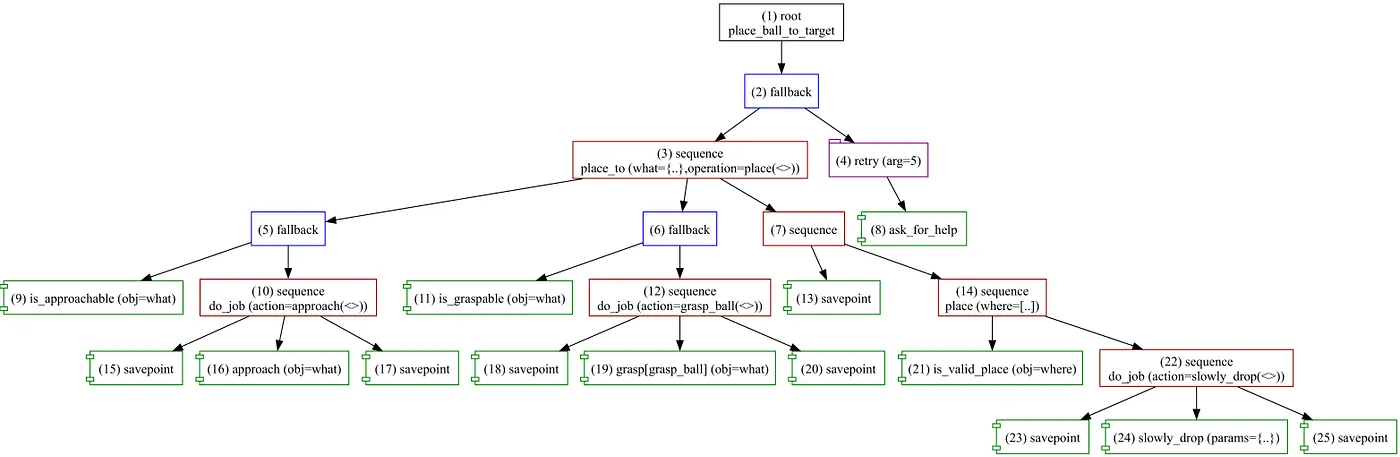

Visualization file main.svg
The framework generates an SVG visualization of the tree.
Blackboard snapshot bb.json
Since we place some information in the Blackboard, it can be useful to see the final snapshot.
{
"storage": {
"info2": {
"Unlocked": {
"String": "finish"
}
},
"info1": {
"Unlocked": {
"String": "initial"
}
}
}
}
Thus, by having two simulator profiles for success and failure cases, we can cover the execution of the tree.
sim_fail.yaml
config:
trace: gen/main_fail.trace
graph: gen/main.svg
bb:
dump: gen/bb_fail.json
max_ticks: 10
actions:
-
name: task
stub: failure
params:
delay: 100
sim_success.yaml
config:
trace: gen/main_success.trace
graph: gen/main.svg
bb:
dump: gen/bb_success.json
max_ticks: 10
actions:
-
name: task
stub: success
params:
delay: 100
Exceptions are beyond the scope here, but the logic can be tested easily without writing any code.
Conclusion
The simulation process can be very useful in automation and manual scenarios — in testing, debugging, or even designing trees.
In the next chapter, we will try to implement trees using synchronous and asynchronous actions.
